How Much Overlap on Roofing Felt?
Roofing felt plays a crucial role in protecting structures from water damage and ensuring longevity. However, determining the correct overlap is essential for a watertight installation. This guide will provide detailed answers to common questions about roofing felt overlaps, installation techniques, and best practices.
Learn how much overlap on roofing felt ensures durability and water resistance. Explore detailed installation tips, patterns, and adhesive techniques for effective results.
How Much Overlap for Roof Membrane?
The amount of overlap required for a roof membrane largely depends on the pitch of the roof:
- Roof pitch under 14°: Requires an overlap of at least 150 mm.
- Pitch between 15° and 35°: A 100 mm overlap suffices.
- Pitch over 35°: Overlap can be as small as 75 mm.
For features like valleys and ridges, extend the membrane by about 300 mm on each side to ensure complete coverage and prevent leaks.

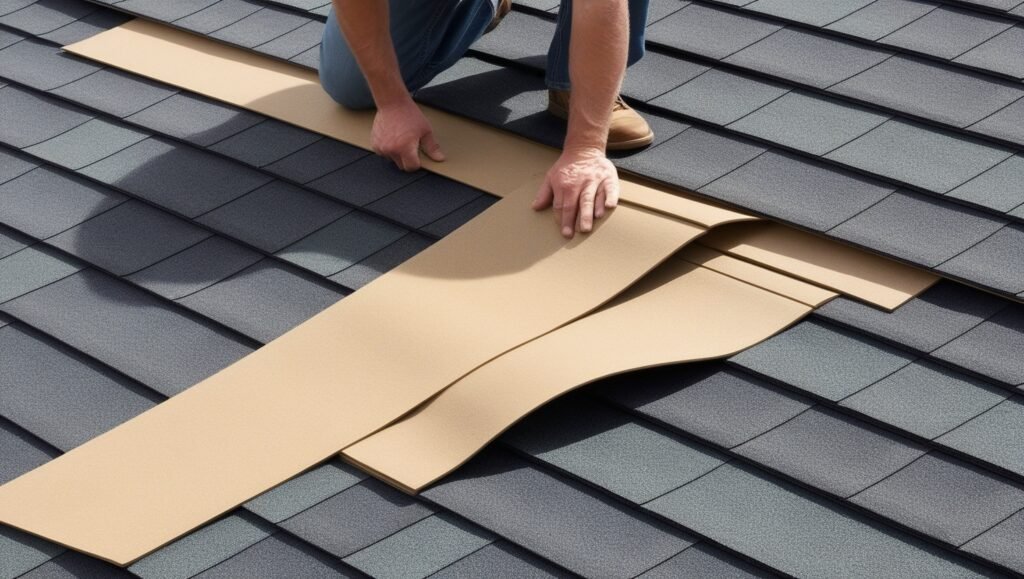

How Much Should You Overlap Roofing Underlayment?
Roofing underlayment typically requires a minimum overlap of 2 inches (50 mm) horizontally and 4 inches (100 mm) vertically. For areas prone to heavy rainfall or snow, consider increasing the overlap to enhance water resistance.
How Much Should Roofing Panels Overlap?
Roofing panels, especially metal ones, generally need an overlap of 1-2 inches. For corrugated panels, the overlap should extend to one full ridge to ensure structural integrity and prevent water seepage.
How to Attach a Roofing Membrane
Follow these steps to attach a roofing membrane properly:
- Start at the Bottom: Begin at the eaves, rolling out the membrane horizontally.
- fix with Nails or Adhesive: To fix the edges, use roofing adhesive or galvanized nails.
- Overlap Subsequent Layers: Ensure each layer overlaps the previous one by the recommended amount for your roof pitch.
- Seal Edges and Joints: Apply adhesive or sealant to overlaps for added protection.
How Far Should Roofing Felt Overlap?
For roofing felt, the overlap distances vary depending on the location and purpose:
- Standard horizontal overlaps: 2-4 inches.
- Valleys, ridges, and hips: 6-8 inches.
- New rolls: Overlap by 3-5 inches when starting a new roll.

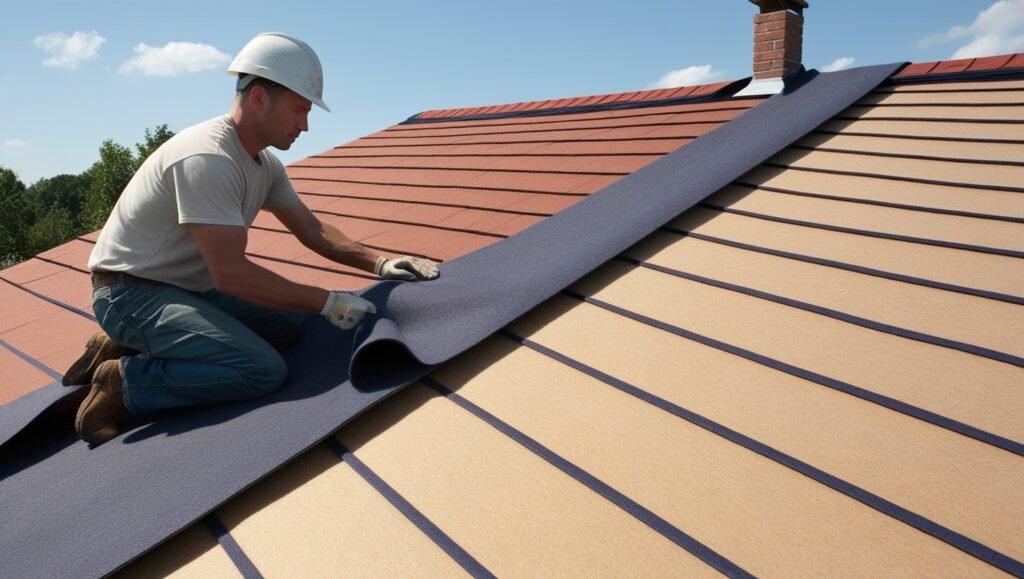

How Much Do You Lap Roofing Felt?
When lapping roofing felt:
- Ensure a minimum overlap of 4 inches for low-pitched roofs.
- For steeper slopes, a 2-inch overlap is sufficient.
- In high-moisture areas, increase overlaps to prevent seepage.
How Much to Overlap Felt?
According to the application the overlap amount can be vary:
- Flat roofs: Require 4-6 inches of overlap for added waterproofing.
- Sloped roofs: Typically need 2-4 inches.
- Special features: Valleys and hips demand at least 6 inches.
How Much Should a Roof Overlap?
A roof’s overhang, which is different from felt overlaps, should extend 1-2 inches beyond the drip edge to direct water into gutters effectively.
How Much Overlap on Roofing Membrane?
Roofing membranes need:
- Horizontal overlaps: 150 mm for low-pitched roofs.
- Vertical overlaps: 100 mm.
- Edges and verges: Lap onto masonry by at least 50 mm for added sealing.
Felt Laying Techniques for Flat Roofs
- Preparation:
- Clear debris and ensure the surface is even.
- Replace any damaged timber.
- Apply Adhesive: Spread a thin, even layer of adhesive over the roof.
- Seal the Edges: Use adhesive or a hot-air welder to secure overlaps.
- Repeat Layers: Add at least two more layers for durability.
How to Felt a Sloping Roof
For sloping roofs:
- Start at the Bottom: Lay the first row horizontally along the eaves.
- Overlap Layers: Ensure overlaps of 2-4 inches.
- Secure with Nails: Space galvanized nails every 4 inches along the edges.
- Seal Joints: Apply bitumen glue for watertight overlaps.
Methods for Installing Drip Edge and Roof Felt
- Install the Drip Edge:
- Nail the drip edge along the eaves.
- Ensure it extends slightly over the fascia board.
- Lay the Felt:
- Start at the eaves and overlap onto the drip edge by two inches.
- Secure with roofing nails or staples.
- Continue Upward:
- Overlap each subsequent layer of felt.
- Seal the Ridges: Use adhesive to secure overlaps at ridges and hips.
Roofing Felt Nailing Pattern
A proper nailing pattern ensures durability:
- Space nails three to four inches apart along with the edges.
- Place nails every six to eight inches along the center.
- Use galvanized nails to prevent rust.
How to Feel the Roof of a Shed Without Nails
For nail-free felt installation:
- Use Adhesive:
- Apply adhesive across the roof surface evenly.
- Press the felt firmly onto the adhesive.
- Seal Edges: Use extra adhesive at overlaps and edges.
- Add Weight: Place a temporary weight on the felt until the adhesive sets.
Roof Felt Adhesive
Roof felt adhesive enhances water resistance and durability. Apply it:
- At overlaps and edges for added sealing.
- Across the entire surface for flat roofs.
- In a thin, even layer to avoid uneven surfaces.
Detecting the Corners and Edges of a Flat Roof
- Cut Felt to Fit: Trim felt to cover edges and corners precisely.
- Apply Adhesive: Spread adhesive generously on the edges.
- Secure the Felt: Fold the felt around the edges and press firmly.
- Seal with Additional Layers: Add extra felt layers to reinforce corners.
Common Mistakes to Avoid
- Inadequate Overlap: Too little overlap can lead to water seepage.
- Poor Adhesive Application: Uneven or insufficient adhesive can cause lifting.
- Ignoring Roof Features: Valleys and ridges need extra attention to ensure proper sealing.
Choosing the Right Materials
The quality of the felt and adhesive can significantly impact the roof’s lifespan. Consider:
- Heavy-Duty Felt: Ideal for regions with harsh weather conditions.
- Self-Adhesive Felt: Simplifies installation for DIY projects.
- UV-Resistant Membranes: Protects against sun damage.
Tips for Effective Roofing Felt Installation
- Use High-Quality Felt: Durable materials last longer and resist weathering.
- Work in Dry Weather: Wet surfaces compromise adhesive effectiveness.
- Smooth Out Wrinkles: Ensure the felt lies flat to prevent water pooling.
- Follow Manufacturer Guidelines: Adhere to specific recommendations for overlaps and adhesives.
Conclusion
Understanding the correct overlap on roofing felt is vital for a durable, watertight roof. Whether working on flat or sloped roofs, following best practices ensures long-lasting protection against the elements. Proper preparation, secure overlaps, and the right materials make all the difference in achieving professional results. With this guide, you can confidently tackle roofing felt installation and maintain the integrity of your roof for years to come.
By taking the time to execute each step carefully, you’ll ensure a roof that stands strong against weather challenges and enhances your structure’s durability.
